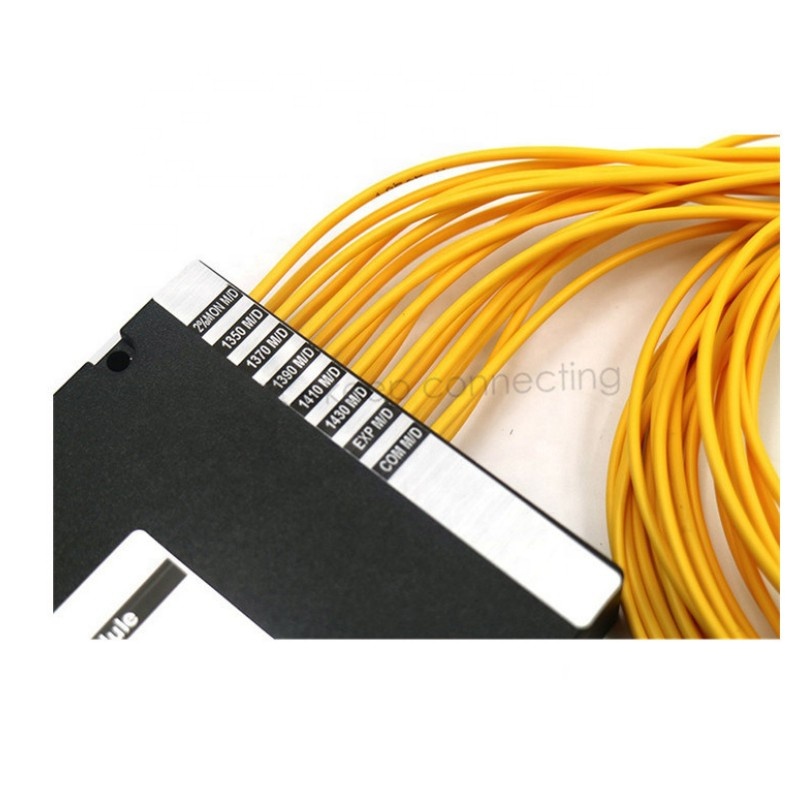

SC APC/UPC Fiber Optic Multiplexer Module 4/8/16 Mux/Demux ABS 1270-1610nm 2/4/8/16 CWDM Fiber Splitter

Name: SC APCUPC Fiber Optic Multiplexer Module 4816 MuxDemux ABS 12701610nm 24816 CWDM Fiber Splitter
Brand: FIBCONET
Price: 0.45 USD

Buy cheap SC APC/UPC Fiber Optic Multiplexer Module 4/8/16 Mux/Demux ABS 1270-1610nm 2/4/8/16 CWDM Fiber Splitter product

Model Number : 1x8/1x16/1x32 SC APC /UPC PLC splitter in ABS box

Type : PLC splitter, ABS box

Place of Origin : NINGBO

Brand Name : FIBCONET

Use : Fiber patch cord manufacture, Communication Base Station

Warranty Time : 1 year

Network : None

Product name : PLC splitter

Connector type : SC APC/UPC

Fiber core : 1x8/1x32/1x16

Fiber Type : G657A1 G657A2

Color : Yellow

Connector : SC LC FC ST MU

Package : Carton

Name : Optical Fiber G657A ABS Plc splitter

MOQ : 1000 pieces

Price : $0.45/pieces >=1000 pieces

Contact Now

DESCRIPTION

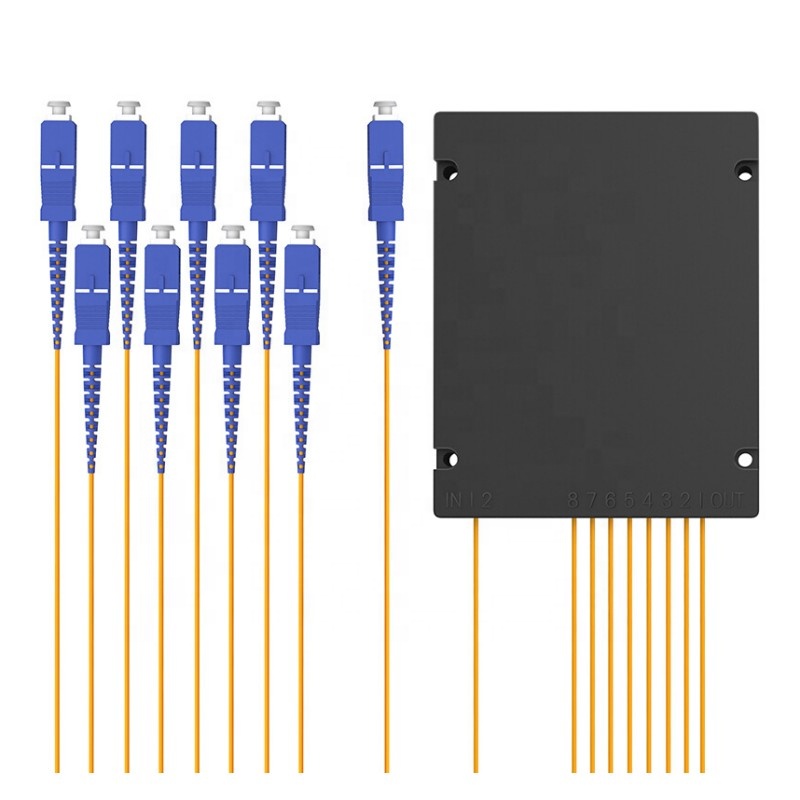

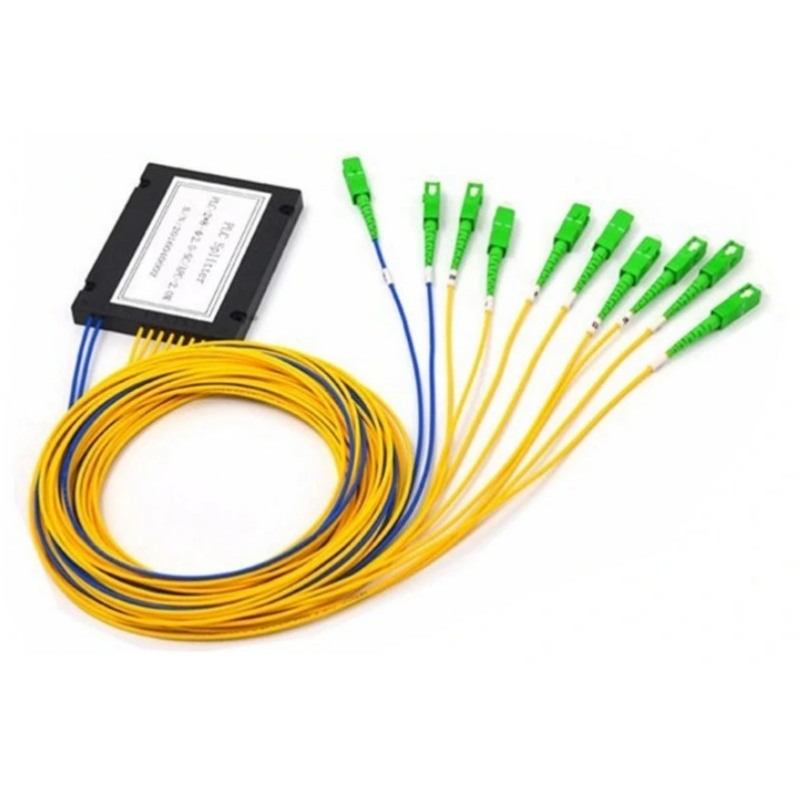

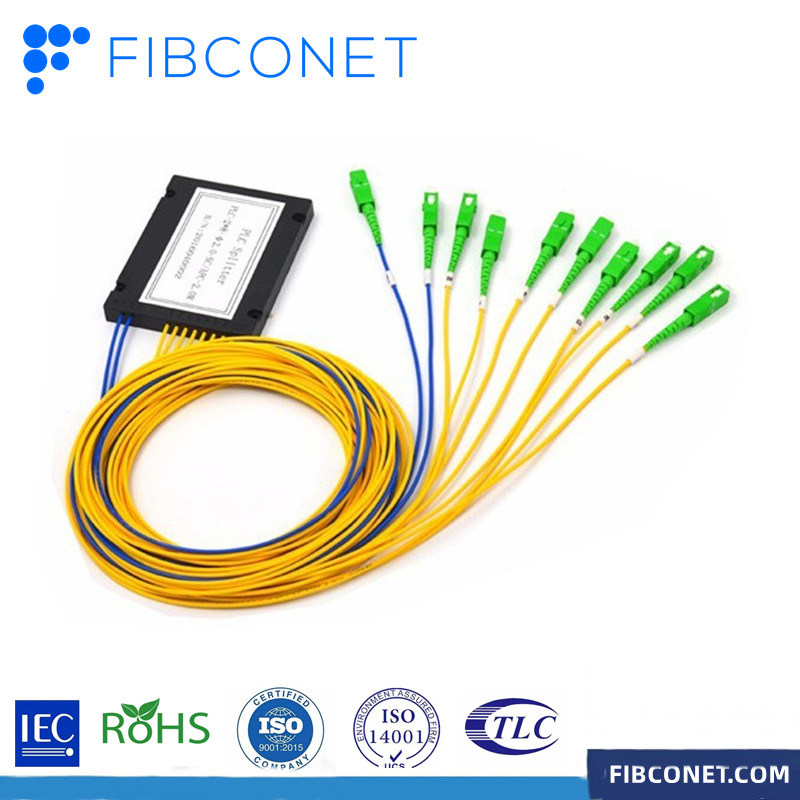

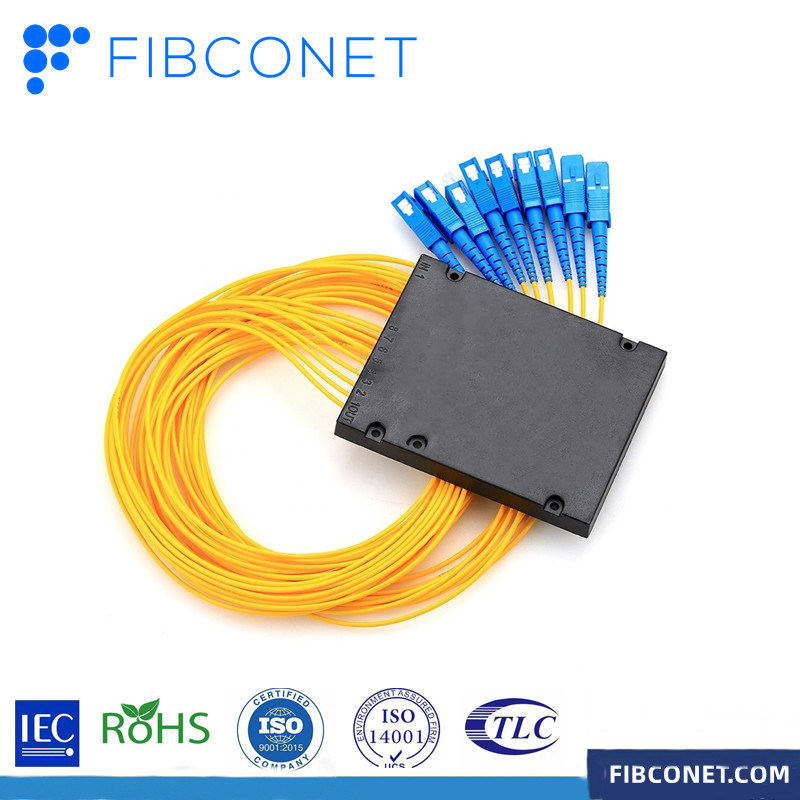

Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica
optical waveguide technology. It is used to split a fiber optic beam into several beams at a certain splitting ratio. It is an
important passive device in passive optical network.

SC APC/UPC Fiber Optic Multiplexer Module 4/8/16 Mux/Demux ABS 1270-1610nm 2/4/8/16 CWDM Fiber Splitter

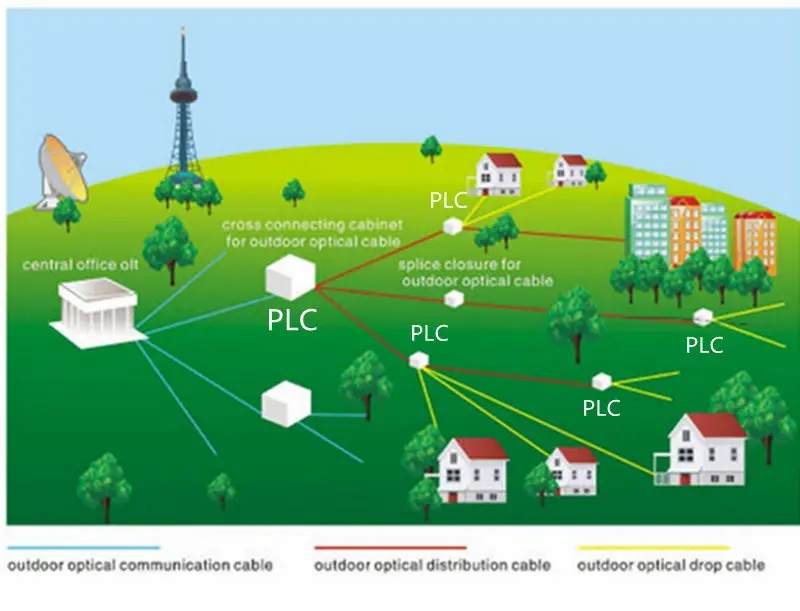

APPLICATIONS

· FTTx
· Cable television (CATV)
· Local area networks (LAN)
· Test equipment
· Passive optical networks(PON)

FEATURE

· Wide operating wavelength range: from 1260nm to 1650nm
· Wide Operating Temperature: from -40ºC to 85ºC
· Good channel-to-channel uniformity
· High reliability and small size
· Adopt high-strength stainless steel, pass the salt spray test
· Adopt 100% new raw material, ROHS compliance
· Low Insertion loss&Low PDL Compact Design

1xN PLC Splitter Specification
Operating Wavelength(nm)					1260~1650
Fiber Type					G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)							55/50
Operating Temperature							-40~+85
Directivity (dB)							≥ 55
Storage Temperature							-40~+85

2xN PLC Splitter Specification
Operating Wavelength(nm)					1260~1650
Fiber Type					G657A1 or as customers' order
Port Configuration	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0	24.5
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.35	0.4	0.4
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.5	0.5	0.5	0.5	0.5
Return Loss (dB)							55/50
Operating Temperature							-40~+85
Directivity (dB)							≥ 55
Storage Temperature							-40~+85

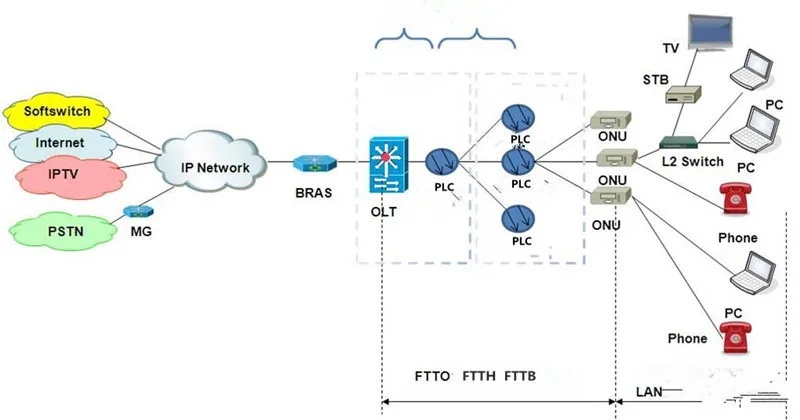

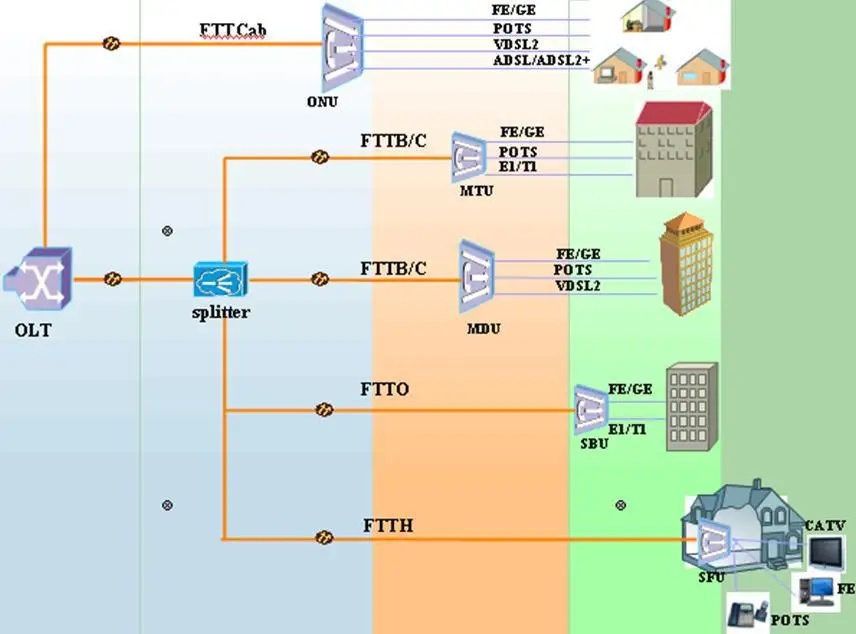

System Design：

1. Are you a manufacturer or trade company?
We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?
Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal Box, except that, we have very good prices for part of the fiber tools!

4. How can we place order?
After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight costs!

5. What is the quality of your product?
All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?
Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days). Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?
1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?
1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you!
